WSD-600B Three Side Seal Pouch Machine
The precise equipments of 3 Japanese MAZAK-600 and 10 Yawei3016 from Taiwan is the quality guarantee of our products.
Product Category:
Product Introduction
|
Roll size |
φ600mm Max width 1240mm |
|
|
Bag-making speed |
30~180cpm（≈36m/min） |
|
|
Bag making form and size |

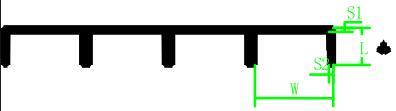

Longitudinal bag-making
|

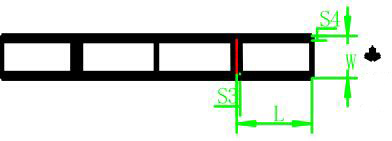

Transverse bag-making
|
|
L：Bag length |
Max.500mm，Multiplying delivery at ultra length |
50~600mm，1~5line array |
|
W：Bag width |
85~500mm，1~5line array |
Max.580mm |
|
S1：Bottom sealing |
Max.80mm |
|
|
S2：Side sealing |
Max.25mm |
|
|
S3：Bottom sealing |
|
Max.25mm |
|
S4：Side sealing |
|
Max.40mm |
|
Total output |
35kw |
|
|
Pueumatic source |
0.6Map |
|
|
Cooling water |
5L/min |
|
|
Weight |
5000kg |
|
|
Overall dimension |
8500*2400*1865（mm）L*W*H |
|
Feeding direction
Feeding direction
